Zoltaron Aero EFIS system uses a remote engine monitoring solution to simplify installation, improve flexibility and allow an upgrade path without affecting the EFIS system.
The RDAS ZLT Engine monitoring module

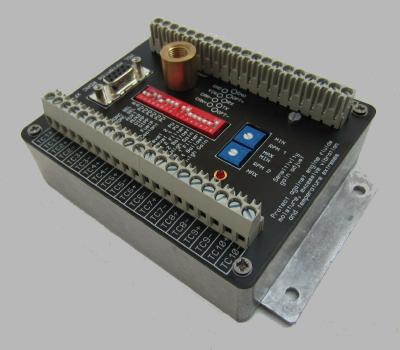

The RDAS XX is the Engine monitor module. Available in two versions, the RDAS XX is the base version and the RDAS XX MAP adds a precise silicon manifold pressure sender (usuable for any pressure in the 0 to 2.5 Bar (30psi) range (non aggressive gases or liquids only).
The RDAS XX provides an optically isolated communications interface compatible with all existing EFIS systems. In addition it provides a CAN bus interface used with iEFIS systems. Further to this a RS232 interface is provided allowing thrid party (OEM) use of the RDAS system.
The RDAS XX provides up to 12 channels for thermocouple sensors (EGT,CHT), channels dedicated to NTC temperature and other probe types, oil and fuel pressure, fuel levels, dual fuel flow and dual RPM, manifold or boost pressure (RDAS XX MAP only).

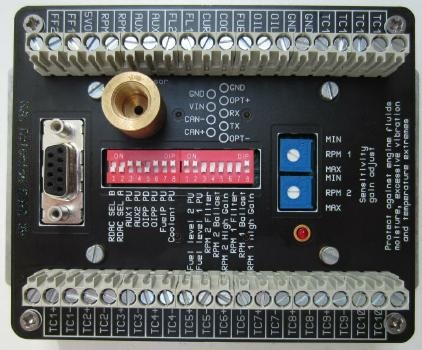

The RDAS XX is quick and easy to install thanks to our well proven use of vibration proof moving cage wire terminals. These terminals allow quick attachement of wires and are very useful during typical sensor fault finding.
