- 10W CW TX power (unmodulated carrier)
- Built in VSWR meter for antenna checks, tuning and transmitter protection
- 25Khz and 8.33Khz fully compliant receiver and transmitter
- Offset carrier support for all classes
- Automatic store and recall of last received transmissions (up to 1 minute total)
- Two place digital intercom with advanced VOX
- 12/14V to 24/28VDC operation, lowest power consumption in class
- Rugged mechanical design
- Very low cost

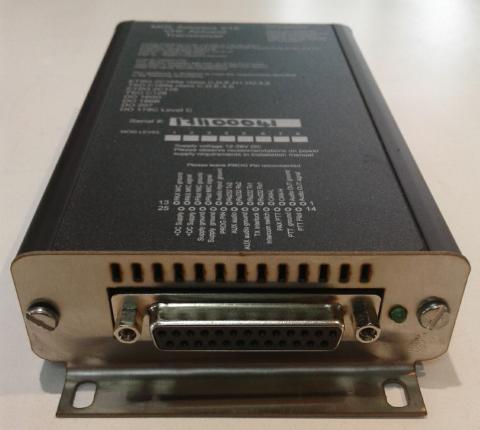

The ZLT61 VHF airband transceiver is a split module design. This allows great flexibility of use. Connect to an MGL iEFIS and use the EFIS as control head for a low cost, minimum panel space design or fit a Razor 3.1/8” touch screen control head or a Vega 2.25” control head – or fit any combination of these if you would like to control your radio from different stations.
In combination with the ZLT01 navi receiver build a NAV/COM solution supporting industry sta ndard protocols at lowest cost yet with a performance exceeding the most expensive current solutions
Both the ZLT01 navi receiver and ZLT61 Airband transceiver are built around a newly developed high performance direct conversion receiver architecture that avoids many of the problems present in traditional radios while offering possibilities simply not practical with older technology.
